Battery

  • BATTERY MODULE 10K PACK HV

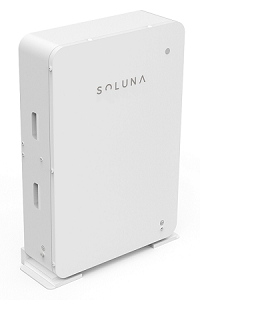

BATTERY MODULE 10K PACK HV

BATTERY MODULE 10K PACK HV

  • Lithium lon Battery
  • 230.4V Lithium lon Battery
  • 10 kWh Lithium lon Battery
  • 100% Depth of discharge
  • Product description:
  • INQUIRY
Technical Specifications
POWER
Battery Type Lithium lon Battery
Capacity 10 kWh
Depth of discharge 100%
Voltage 230.4 V
Certification Cell: UL1642
Pack Refer to UN38.3, UL1973 and IEC62619
Max Charge/Discharge 25A/40A
Operating Temp -10° to 45°C / 14°F to 113°F
Storage Temp ~30° to 60°C / -22°F to 140°F
Humidity Conditions 5% to 95%
MISCELLANEOUS
Installation Indoors/Outdoors
Weight 137kgs
Dimensions (H x W x D)
905mm x 654mm x 227mm
Warranty 10-year standard warranty
