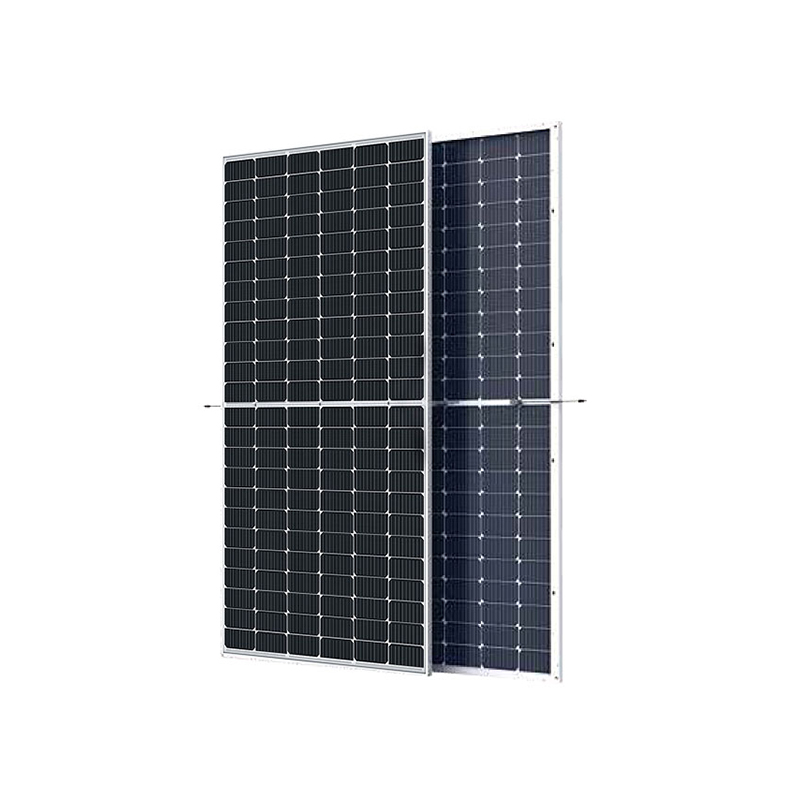

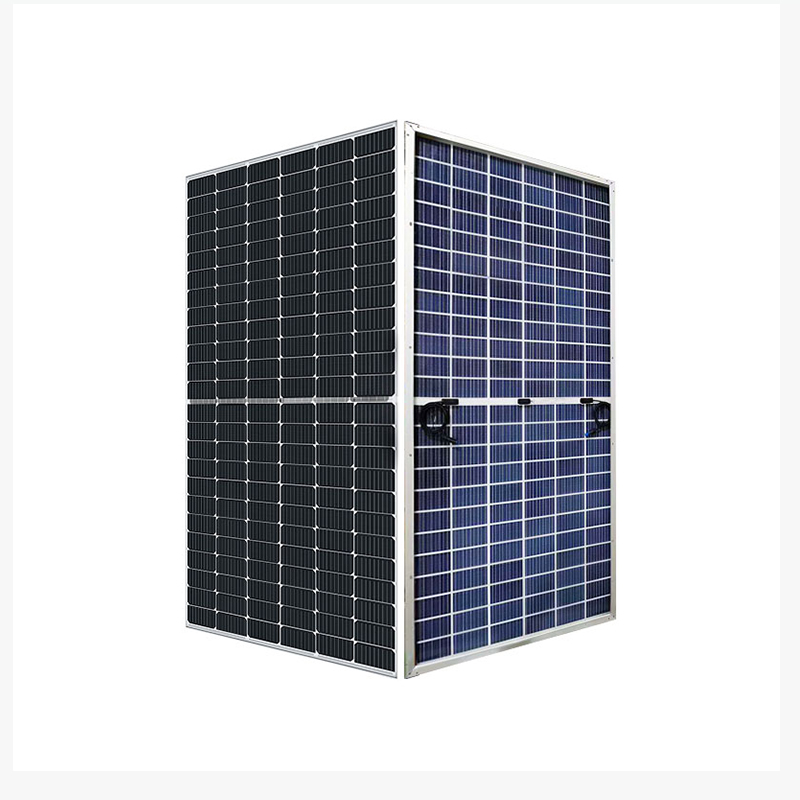

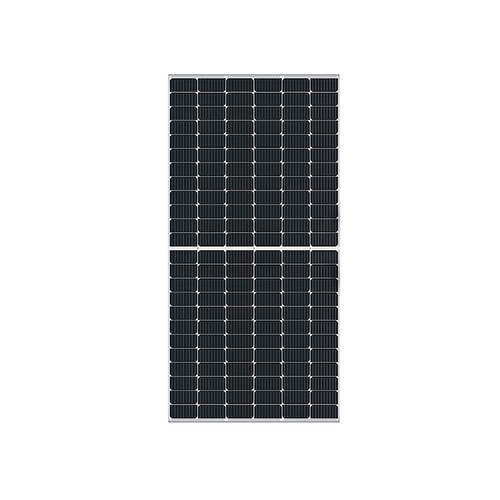

Half-Cell Bifacial Double Glass Modules

  • SUN 72MD-H8S
  • SUN 72MD-H8S
  • SUN 72MD-H8S
SUN 72MD-H8SSUN 72MD-H8SSUN 72MD-H8S

SUN 72MD-H8S

  • 530-550W PV modules
  • Half cell Bifaical Mono PERC Double glass
  • High Efficiency Module ​
  • 180MM Half-cell solar panels
  • Product description: SUN 72MD-H8S 530-550W Half cell Bifaical Mono PERC Double glass
  • INQUIRY

Module Type 530W 535W 540W 545W 550W
STC  NOCT STC  NOCT STC  NOCT STC  NOCT STC  NOCT
Maximum Power At STC(Pmax) 530W   399.2W 535W   403.0W     540W  406.8W      545W  410.5W 550W  414.3W
Short Circuit Current(Isc) 13.58A  10.97A 13.63A   11.01A    13.70A   11.07A      13.76A  11.12A 13.82A  11.17A
Open Circuit Voltage(Voc) 49.4V    46.2V 49.6V     46.4V     49.8V    46.5V        50.0V    46.7V 50.2V    46.9V
Maximum Power Current(Impp) 12.75A  10.40A 12.80A   10.44A    12.86A   10.49A       12.92A  10.54A 12.98A  10.58A
Maximum Power Voltage(Vmpp) 41.6V    38.4V 41.8V     38.6V      42.0V    38.8V        42.2V    39.0V 42.4V    39.1V
Module Efficiency 20.45% 20.67% 20.84% 21.03% 21.23%
Power Tolerance 0~+5W     0~+5W     0~+5W      0~+5W 0~+5W
Maximum System Voltage VDC 1500V
Technicial Datasheet with Different Rear Side Power GainReference to 370W Front
Backside Power Gain     5% 10% 15% 20% 25%
Maximum Power At STC(Pmax) 562 598 615 642 669
Short Circuit Current(Isc)    14.28 14.97 15.63 16.28 16.96
Open Circuit Voltage(Voc)   50 50 50 50.2 50.2
Maximum Power Current(Impp)  13.41 14.06 14.68 15.29 15.93
Maximum Power Voltage(Vmpp) 41.90  41.90  41.90  42.00  42.00
