MBB Half Cell Modules

  •  SUN 78M-H8
  •  SUN 78M-H8
  •  SUN 78M-H8
 SUN 78M-H8 SUN 78M-H8 SUN 78M-H8

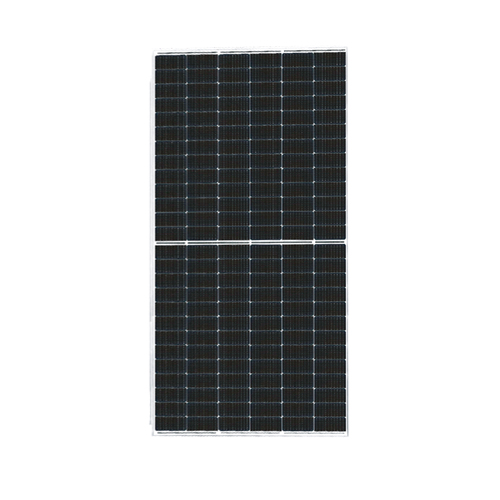

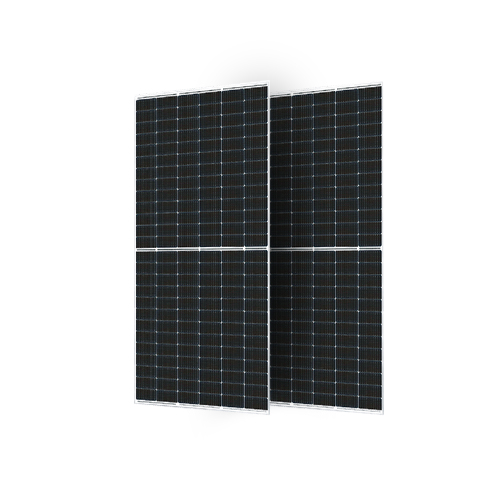

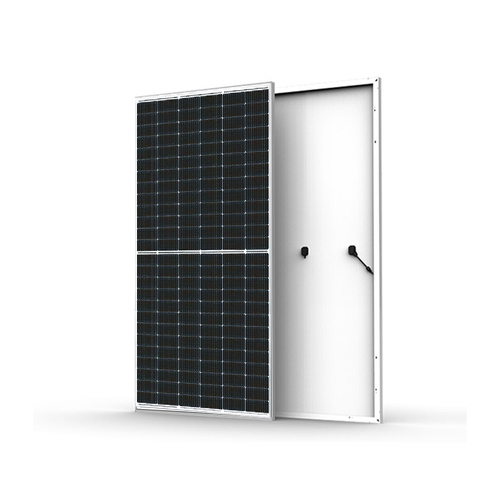

SUN 78M-H8

  • 575W-595W PV modules
  • 78 Cells 9BB solar panels
  • multi-busbar PERC cells
  • 182MM Half-cell solar panels
  • Product description:
  • INQUIRY
Module Type 575W 580W 585W 590W 595W
STC  NOCT STC  NOCT STC  NOCT STC  NOCT STC  NOCT
Maximum Power At STC(Pmax) 575W   433.1W 580W   436.9W 585W  440.7W 590W  444.4W 595W  448.2W
Short Circuit Current(Isc) 13.61A  11.00A 13.67A   11.05A 13.73A   11.09A 13.78A  11.13A 13.84A  11.18A
Open Circuit Voltage(Voc) 53.5V    50.0V 53.7V     50.2V 53.9V    50.4V 54.1V    50.6V 54.3V    50.7V
Maximum Power Current(Impp) 12.78A  10.42A 12.84A   10.47A 12.89A   10.52A 12.94A  10.55A 12.99A  10.60A
Maximum Power Voltage(Vmpp) 45.0V    41.6V 45.2V     41.7V 45.4V    41.9V 45.6V    42.1V 45.8V    42.3V
Module Efficiency 20.78% 20.96% 21.14% 21.32% 21.50%
Power Tolerance 0~+5W 0~+5W 0~+5W 0~+5W 0~+5W
Maximum System Voltage VDC 1500V
