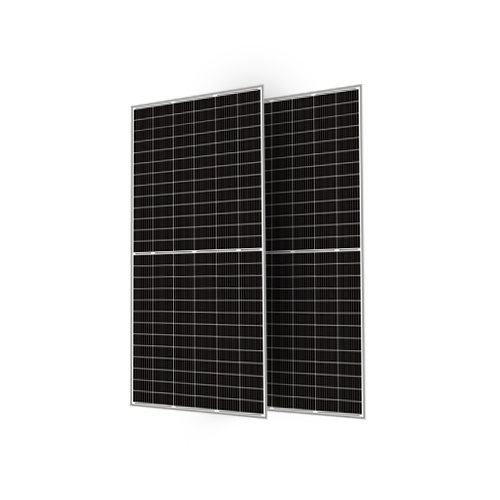

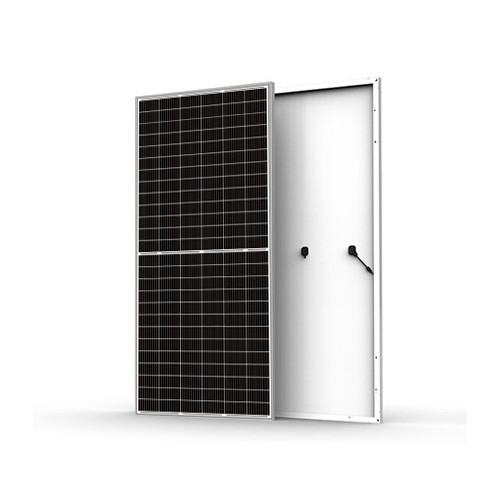

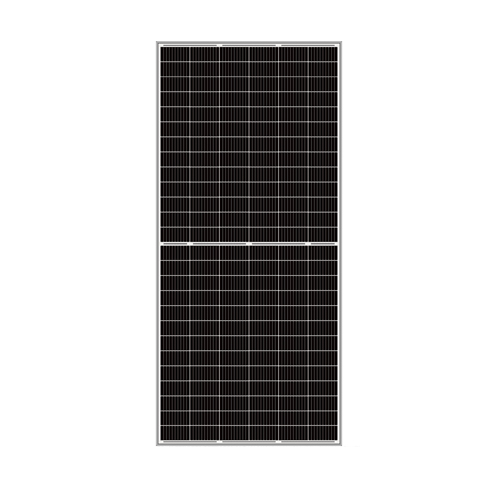

MBB Half Cell Modules

SUN 78M HFD

Module Type	435W	440W	445W	450W	455W	460W
	STC NOCT	STC NOCT	STC NOCT	STC NOCT	STC NOCT	STC NOCT
Maximum Power At STC(Pmax)	435W 327.0W	440W 330.7W	445W 334.5W	450W 338.3W	455W 342.0W	460W 319.5W
Short Circuit Current(Isc)	11.14A 9.00A	10.57A 8.56A	445W 334.5W	10.71A 8.67A	10.77A 8.72A	10.84A 8.67A
Open Circuit Voltage(Voc)	49.2V 45.9V	53.8V 50.2V	10.64A 8.61A	54.4V 50.7V	54.7V 51.0V	55.0V 47.6V
Maximum Power Current(Impp)	10.66A 8.53A	10.02A 8.11A	54.1V 50.5V	10.16A 8.22A	10.22A 8.26A	10.29A 8.22A
Maximum Power Voltage(Vmpp)	40.8V 38.3V	43.9V 40.8V	10.09A 8.17A	44.3V 41.2V	44.5V 41.4V	44.7V 38.9V
Module Efficiency	19.83%	20.06%	20.28%	20.51%	20.74%	20.97%
Power Tolerance	0~+5W	0~+5W	0~+5W	0~+5W	0~+5W	0~+5W
Maximum System Voltage	VDC 1500V
