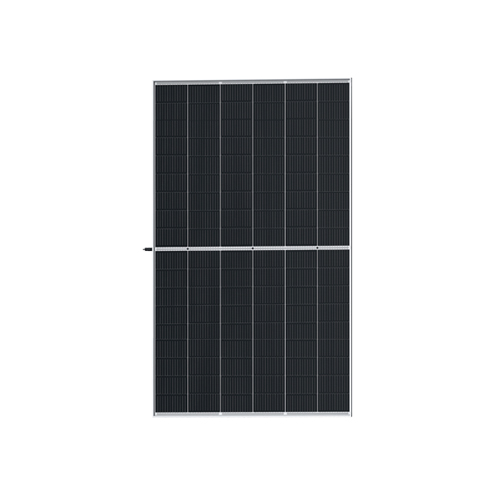

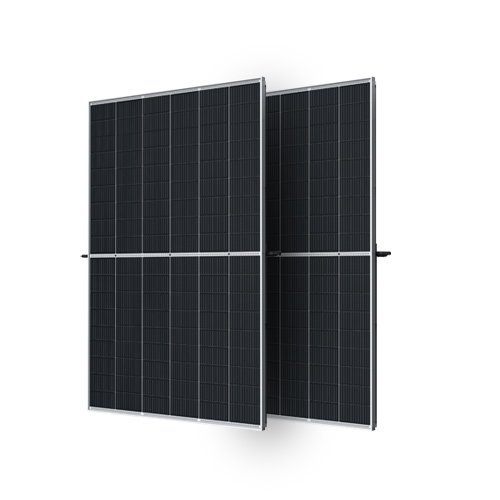

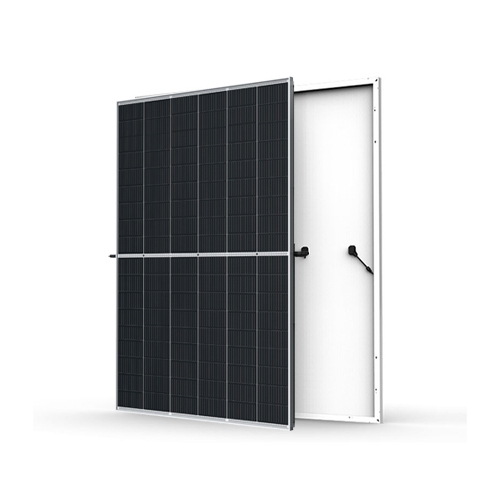

MBB Half Cell Modules

SUN 72M-H6

Module Type	435W	440W	445W	450W	455W	460W
	STC NOCT	STC NOCT	STC NOCT	STC NOCT	STC NOCT	STC NOCT
Maximum Power At STC(Pmax)	435W 327.0W	440W 330.7W	445W 334.5W	450W 338.3W	455W 342.0W	460W 345.8W
Short Circuit Current(Isc)	11.14A 9.00A	11.21A 9.06A	11.29A 9.12A	11.36A 9.18A	11.43A 9.24A	11.50A 9.29A
Open Circuit Voltage(Voc)	49.2V 45.9V	49.4V 46.1V	49.7V 46.3V	50.0V 46.6V	50.3V 46.9V	50.6V 47.2V
Maximum Power Current(Impp)	10.66A 8.53A	10.73A 8.59A	10.80A 8.65A	10.87A 8.70A	10.94A 8.75A	11.01A 8.71A
Maximum Power Voltage(Vmpp)	40.8V 38.3V	41.0V 38.5V	41.2V 38.7V	41.4V 38.9V	41.6V 39.1V	41.8V 39.3V
Module Efficiency	19.69%	19.92%	20.14%	20.37%	20.60%	20.82%
Power Tolerance	0~+5W	0~+5W	0~+5W	0~+5W	0~+5W	0~+5W
Maximum System Voltage	VDC 1500V
